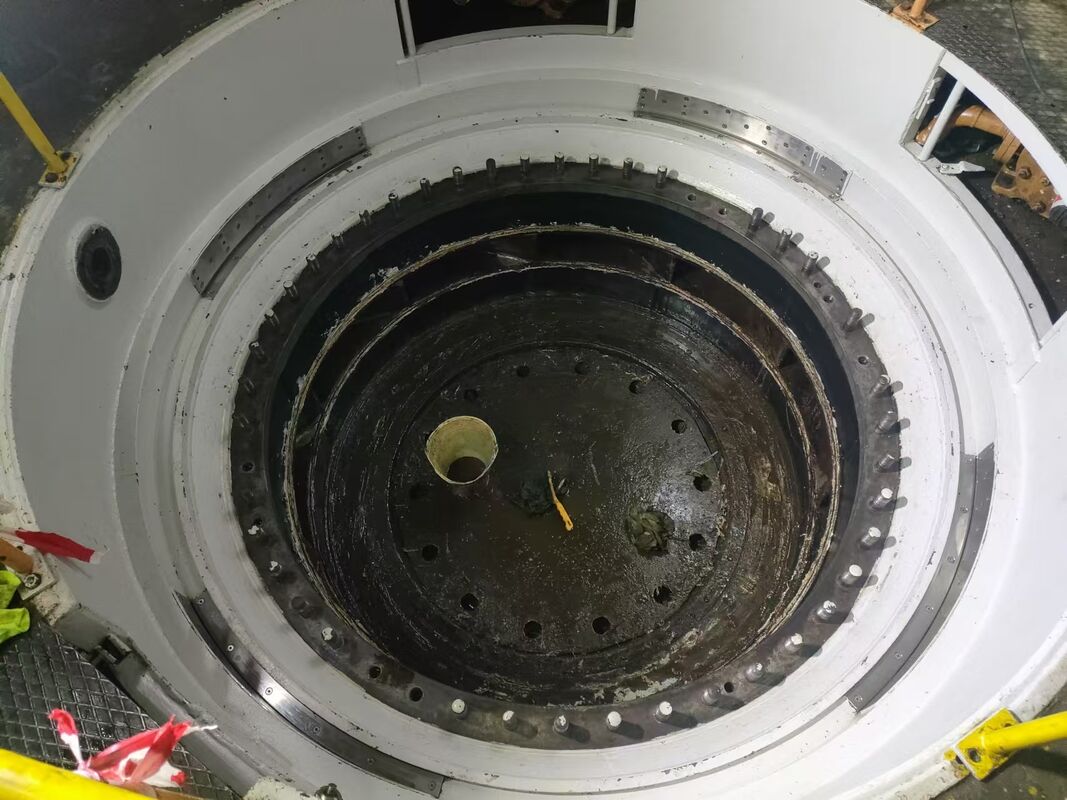

Stainless Steel Kaplan Hydro Turbine with 6300V Generator Voltage and Vertical Water Inlet for Efficient Hydraulic Power Generation
Produktdetails:
| Markenname: | Wawushan |
| Zertifizierung: | ISO9001 |
| Modellnummer: | ZDJ502-202505 |
Zahlung und Versand AGB:
| Minimum Order Quantity: | 1 |
|---|---|
| Preis: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Detailinformationen |
|||
| Generator-Spannung: | 6300V | Läufer-Gewicht: | 2-50T |
|---|---|---|---|
| Hubmaterial: | Kohlenstoffstahl | Kosten: | Erschwinglich |
| Eintritt von Wasser: | Vertikal | Führer Vane Material: | Edelstahl/Roheisen |
| Stromspannung: | 400V | Material: | Edelstahl |
| Hervorheben: | Stainless Steel Kaplan Hydro Turbine,6300V Generator Voltage Hydraulic Power Generator,Vertical Water Inlet Hydro Power Turbine |
||
Produkt-Beschreibung
Kaplan Hydro Turbine - 0.7M Runner Diameter
The Kaplan Hydro Turbine is an advanced and efficient hydro power turbine designed to optimize energy production in various hydroelectric power plants. Known for its affordable cost, this turbine offers a reliable solution for harnessing the power of flowing water to generate electricity.
Product Overview
This cost-effective hydraulic power generator combines performance with durability. Constructed from high-quality stainless steel, the turbine ensures long-lasting operation even under demanding environmental conditions, providing excellent corrosion resistance and enhanced structural integrity.
Key Features
- Product Name: Kaplan Hydro Turbine
- Runner Diameter: 0.7 M
- Maintenance: Low to Moderate, with Adjustable Blades for Easy Servicing
- Water Inlet: Vertical
- Guide Vane Material: Stainless Steel / Cast Iron
- Cooling Method: Water Cooled
- Efficient Hydraulic Energy Turbine designed for optimal performance
- Ideal Hydro Power Generator for sustainable energy production
- Durable Hydraulic Energy Turbine suitable for various water flow conditions
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Stainless Steel |
| Guide Vane Material | Stainless Steel/Cast Iron |
| Cooling Method | Water Cooled |
| Generator Voltage | 6300V |
| Head Range | 2 To 70 Meters |
| Water Inlet | Vertical |
| Runner Diameter | 0.7 M |
| Runner Weight | 2-50T |
| Blades Material | Stainless Steel 0Cr13Ni14Mo |
Applications
The Wawushan Kaplan Hydro Turbine (Model ZDJ502) is a versatile hydraulic water turbine ideal for small to medium-scale hydro power projects. Certified with ISO9001, this turbine is suitable for various installation types including bulb, pit, or tube configurations.
Common applications include river and stream installations, remote rural electrification, small hydroelectric power plants, and renewable energy projects aimed at reducing carbon footprint.
Customization Options
We offer comprehensive customization services for the Wawushan ZDJ502 Hydraulic Turbine Generator. Customize guide vane materials (stainless steel or cast iron), packaging for export, and other specifications to meet your specific operational requirements.
Technical Support & Services
Our comprehensive support includes expert technical guidance, installation and commissioning assistance, maintenance services, upgrades and modernization, genuine spare parts supply, and comprehensive training programs for operational staff.
Performance Highlights
This efficient Hydro Power Generator is designed as part of a robust Hydraulic Power Turbine System, ensuring reliable and cost-effective energy production with a rated power of 2-50MW.
